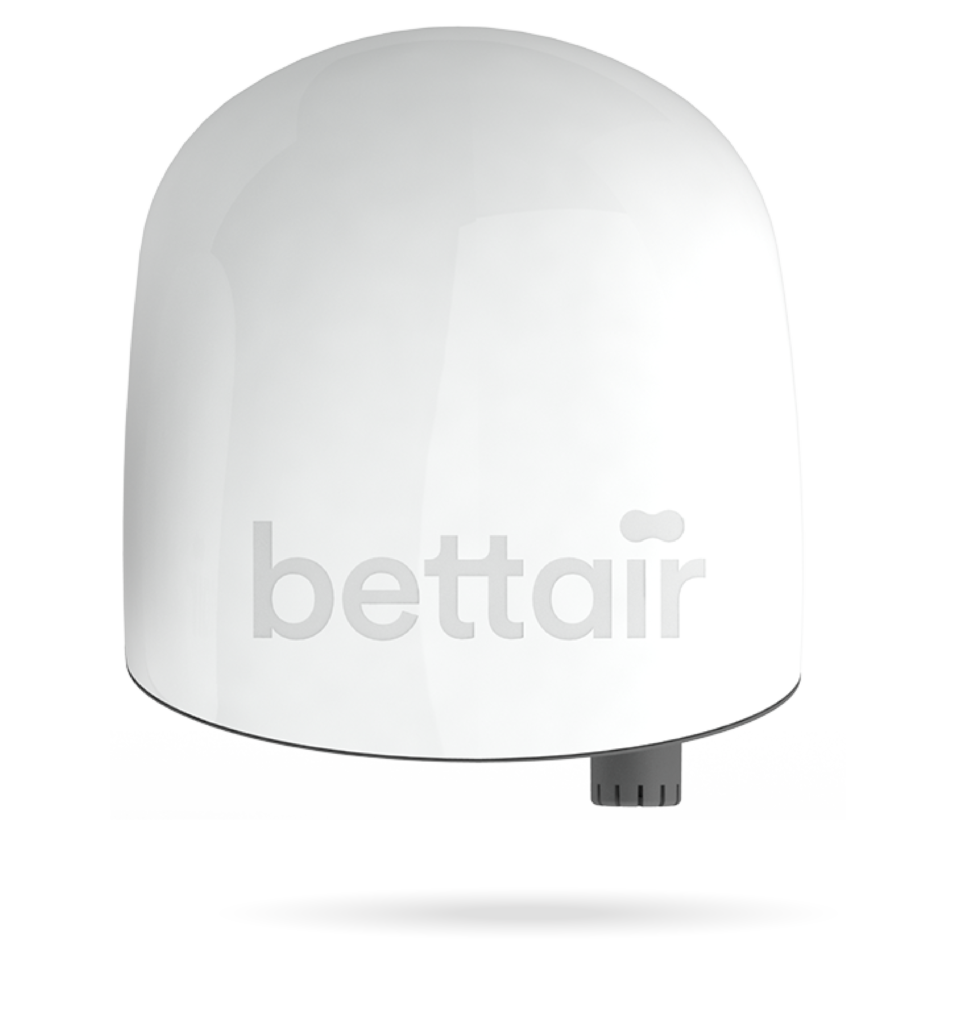

Bettair Node
The bettair® Static Nodes are standalone sensor devices. The nodes require to be main powered, or an external battery, or a solar panel. They transmit data directly to a server for cloud processing.
The bettair® Static Nodes can measure various air pollutants as well as ambient noise level and other environmental parameters.
Measure
The static nodes are composed of electrochemical gas sensors (up to 6) to measure (ppb or µg/m3):
- NO2
- NO
- CO
- O3
- SO2
- H2S
- VOC
- NH3
- HCL
- CH2O
Optical Particle Counter (µg/m3) for:
- PM1
- PM2.5
- PM10
Greenhouse gas measurement:
- CO2 (ppm o mg/m3)
- CH4
Features
Own mechanical design
Dust tight and water resistant (IP65 rated)
Low-power electronics
Wireless

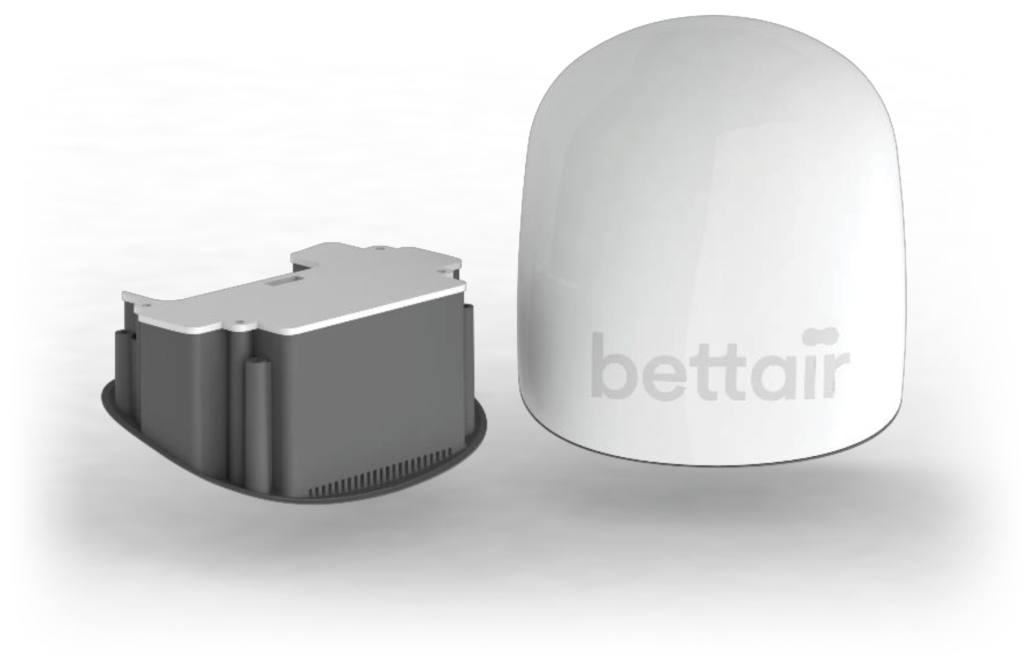

Sensors Cartridge
The lifetime of the sensors (electrochemical cells and particulate matters) inside the nodes is of two years.
Within this period, the quality of the data it is guaranteed. After the two years period, the sensors must be replaced. This is easily done by replacing the bettair® sensor cartridge in the picture.
Connectivity
- LoRaWAN
- Narrowband-IoT
- 3G/4G
- Ethernet

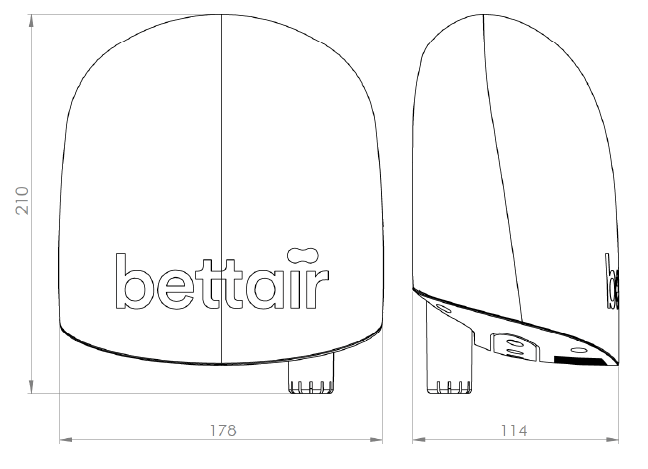

Size & Weight
Height:
210 mm (8.26 inches)Width:
178 mm (7.00 inches)Depth:
114 mm (4.48 inches)
